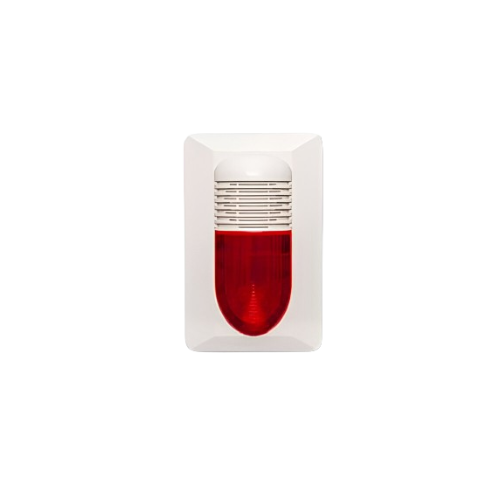

Conventional Sounder Strobe with product code AT-CSS-301 from ATSONTECH, a fire alarm system designed to provide visual and audible warning signals in fire situations.
Main Features
- Plug-in design: Easy Installation and Disassembly
- Red plexiglass cover and ultra-bright LEDs: Provides a strong visual indication.
- Loud alarm sound: Alerting people at the location.
- Long service life and low power consumption.
Technical Specifications
| Item | Detail |
|---|---|
| Operating Voltage | 24VDC (20V ~ 8V) |
| Standby Flow | 0 |
| Alarm Current | ≤37mA |
| Flashing Current | 1.1Hz ~ 1.8Hz (DC20V ~ DC28V) |
| Alarm Volume | 80dB ~ 115dB (A weighted @3m) |
| Tone Cycle | 3.2s ~ 4.8s |
| Ingress Protection | IP43 |
| Operating Temperature | -10°C to +50°C |
| Relative Humidity | ≤95%, non condensing |
| Mounting Holde Distance | 65mm |
| Weight | 258g (with base) |
| Dimension | 144mm x 90mm x 60.5mm |
