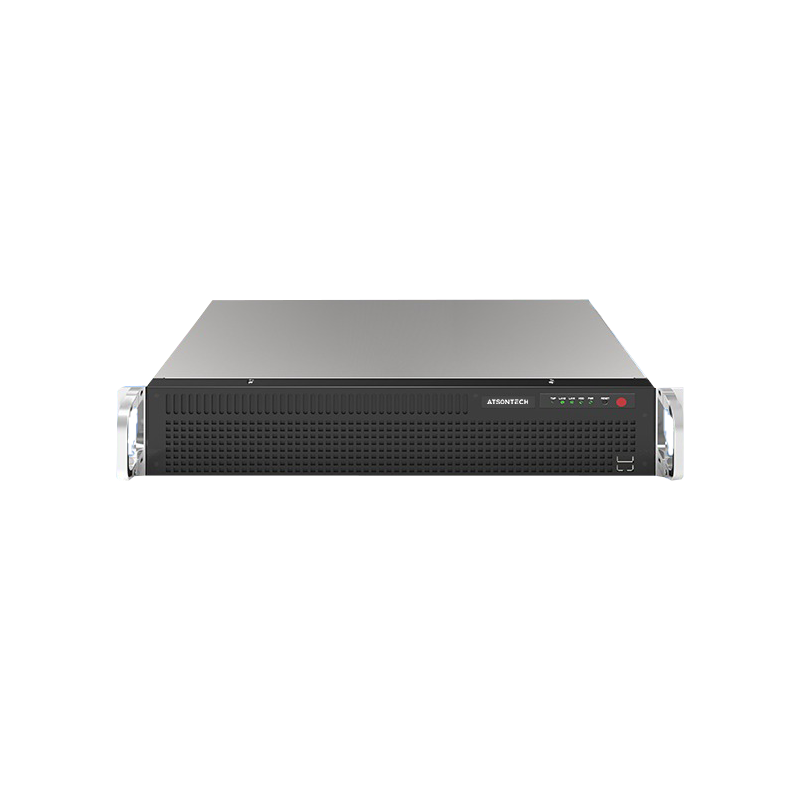

AT-PTV-1000EU is a high-capacity IPTV server designed for diverse environments such as hotels, schools, cruise ships, hospitals, and more. It enables media streaming access from anywhere and supports up to 1000 end users through 10 high-speed data ports. With high integration, flexible deployment, and rich interactive features, it’s ideal for streaming, protocol conversion, cloud management, and PMS system integration.
Main Features:
- Protocol conversion among UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT
- Supports 100 HD or 200 SD channels
- 128GB SSD, 32GB RAM (default), plus 4TB HDD
- Cloud network management and web-based NMS control
- Program PSI/SI information editing and MPTS/SPTS parsing
- Hotel PMS integration
- End-user and channel program list management
- Supports live video, playback, VOD, video stream processing, ads overlay, and welcome messages
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | 90~264VAC |
| Maximum Current | 8500mA |
| Network Card | 8 x Intel i210 for 1GbE BASE-T |
| CPU | Xeon Series |
| SSD | 128GB (default, MSATA) |
| RAM Memory | 32GB DDR4 UDIMM ECC up to 2666MHz |
| Output Protocols | UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT |
| Dimension | 484mm(W) x 478mm(D) x 88.6mm(H) |
