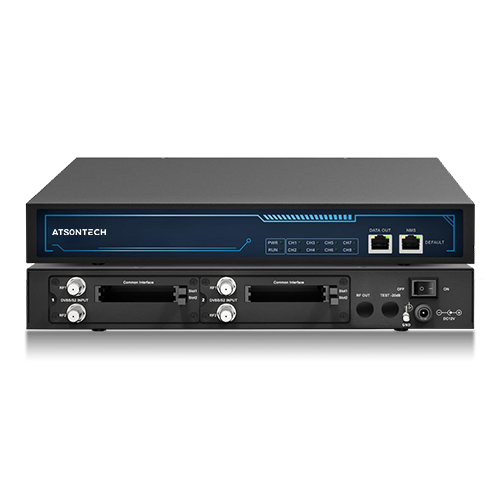

AT-PTV-HE4IFCAM256 is a centralized processing platform for small digital or IPTV front-end services. It supports flexible installation in cabinets, wall-mounted, or desktop setups. Device parameters can be configured via local or cloud networks using an intuitive WEB interface. With intelligent functions such as batch parameter import/export and exception reminders, it delivers a highly integrated and cost-effective IPTV front-end signal processing solution.
Main Features:
- Card design, 2 cards with 4 × HDMI and 4 × DVB-S/S2 input
- Supports 4 CAM slots and 4 DVB-S/S2 ports
- PID remapping, PSI/SI information editing and insertion
- Optional MPTS or SPTS output:
MPTS supports up to 4 IP addresses; SPTS supports up to 256 IP addresses - 1 Gigabit port and 1 management port; operated via PC (WEB) with cloud management support
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | DC 12V |
| Maximum Current | 7000 mA |
| Installation Form | 1U 19-inch chassis, wall mount, desktop |
| Total Number of Slots | 2 |
| Inputs | 4 × HDMI, 4 × DVB-S/S2; 4 CAM slots |
| IP Output Connector | 1 × Gigabit RJ45 network port |
| IP Output Format | UDP/RTP; supports SPTS/MPTS stream processing; up to 256 IP addresses (SPTS) / up to 4 IP addresses (MPTS) |
| Working Temperature | -10 °C ~ 45 °C |
| Working Humidity | 40% ~ 70% |
| Storage Temperature | -40 °C ~ 70 °C |
| Storage Humidity | 40% ~ 95% |
| Dimension | 318 mm (L) × 260 mm (W) × 44 mm (H) |
