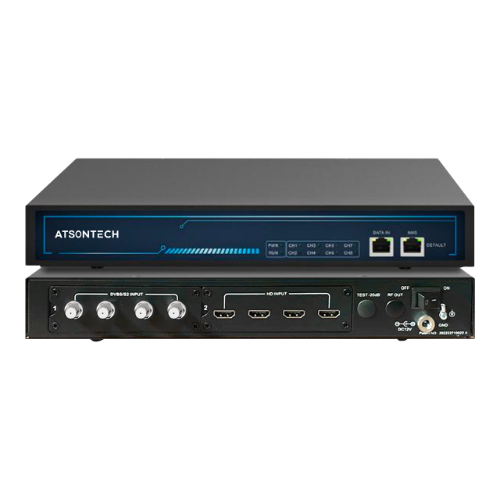

AT-PTV-HE4IFHDM256 is a highly integrated, cost-effective IPTV front-end signal processing platform designed for small-scale digital or IPTV services. With a flexible installation method (rack-mount, wall-mount, or desktop), it offers easy device configuration via local or cloud network. The intuitive web interface supports batch parameter import/export and smart alerts, making it ideal for centralized IPTV signal processing.
Main Features:
- Modular card design: 2 slots with 4 HDMI and 4 DVB-S/S2 inputs
- Supports H.264 video encoding input
- 4-channel DVB-S2 input with BISS descrambling
- Supports UDP/RTP protocol input, SPTS/MPTS stream processing
- PID remapping and PSI/SI information editing/insertion
- Optional MPTS or SPTS output: up to 8 IP addresses for MPTS, 256 for SPTS
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | DC12V |
| Maximum Current | 7000mA |
| Installation | 1U 19-inch chassis, wall-mounted, desktop |
| Connector Input Module | 2 slots; each slot supports 4 HDMI + 4 DVB-S/S2 encoding |
| IP Output Connector | 1 x Gigabit RJ45 network port |
| IP Output Format | UDP/RTP output; supports SPTS/MPTS stream processing, max 256 IP addresses |
| Working Temperature | -10°C ~ 45°C |
| Working Humidity | 40% ~ 70% |
| Storage Temperature | -40°C ~ 70°C |
| Storage Humidity | 40% ~ 95% |
| Dimension | 318mm(L) x 260mm(W) x 44mm(H) |
