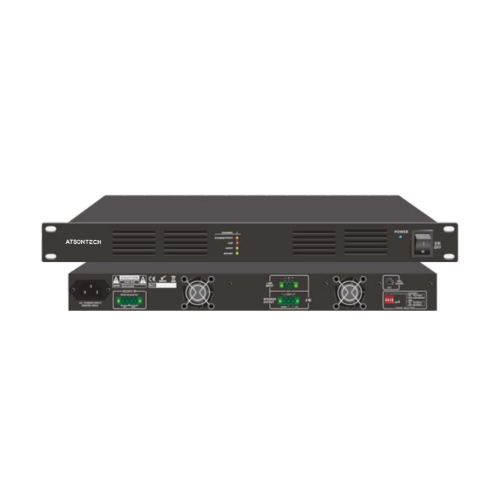

AT-PA-EVC-DA500is a high-power Class-D amplifier with one output channel, delivering 500 watts of strong, efficient audio performance for large areas or demanding PA applications. Ideal for commercial sound reinforcement that needs stable output with low heat and low power consumption.
Main Features:
- Digital Class-D amplifier with 500W output
- Switching power technology for maximum efficiency
- Compact 19” rack mount design
- Speaker outputs: 8Ω / 100V
- Balanced XLR input with phoenix connector
- Separate gain control and high-cut filter
- Built-in auto standby feature to reduce power use
- Protection, clip, input and output indicators
- Complete protection: short circuit, overload, high temp, clip, DC
- AC 115V/230V switchable & DC24V battery input
Technical Specifications
| Item | Detail |
|---|---|
| Rated Power Output | 500W |
| Speaker Outputs | 8Ω / 100V |
| Input | Balanced XLR via phoenix connector |
| Gain Control | Separate gain control |
| Filter | High-cut filter |
| Standby | Auto standby feature |
| Indicators | Protection, clip, input, output |
| Protections | Short circuit, overload, high temperature, clip, DC |
| Power Supply | AC 115V/230V switchable, DC 24V battery input |
