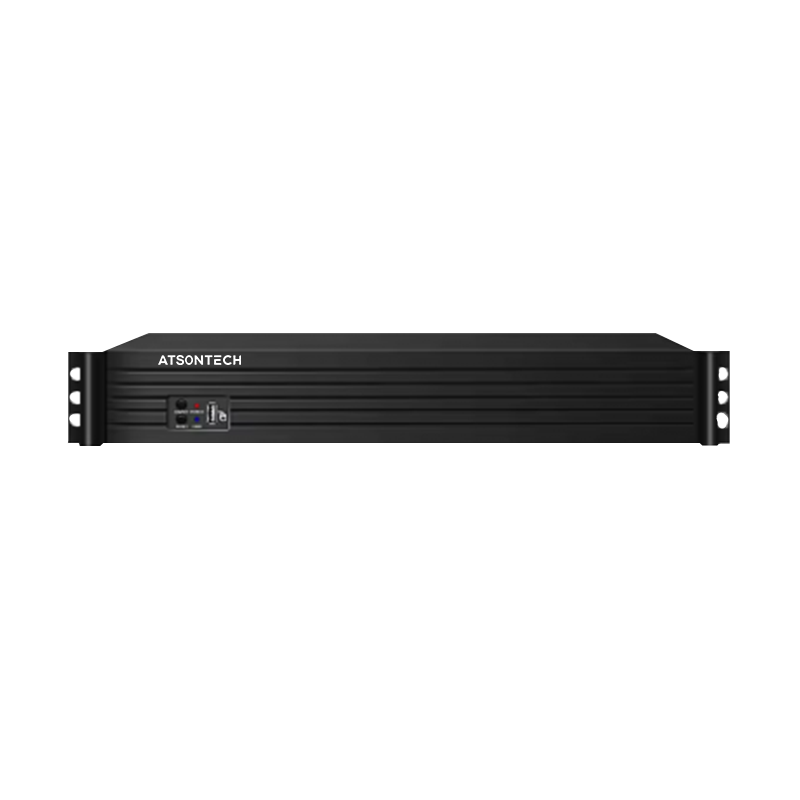

AT-CTV-NV64TB16S9 is a high-performance 64-channel Network Video Recorder designed for modern IP-based CCTV systems. With real-time monitoring, remote access via mobile app or browser, and a user-friendly interface, it is ideal for medium to large-scale surveillance setups requiring secure and centralized video management.
Main Features:
- Up to 64 IP camera inputs
- 4x HDMI outputs, maximum resolution up to 8K
- High decoding capacity: 1-ch@8K, 4-ch@12MP, 9-ch@8MP, 16-ch@5MP, 25-ch@3MP, or 64-ch@D1
- Smart analysis: human detection, line crossing, retrograde detection, absent detection, loitering detection, area intrusion, illegal vehicle parking
- Supports IPSAN, NAS, hot-swap HDD
- ANR function (requires front IP camera with TF card)
- USB disk and cloud upgrade; IP camera upgrade by USB disk
Technical Specifications
| Item | Detail |
|---|---|
| IP Camera Input | 64 Channel |
| Incoming Bandwidth | 800 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output | 4x HDMI: up to 8K (7680×4320), 4K, 1080p |
| Decoding Capacity | 1ch 8K, 4ch 12MP, 9ch 8MP, 16ch 5MP, 25ch 2MP, 64ch D1 |
| HDD | 9 x SATA, up to 16TB each |
| Network Interface | 2 x RJ45 (10/1000 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, PPPoE |
| Remote Users | 25 users |
| Operating Temperature | -10°C ~ 50°C |
| Storage Condition | Less than 90% RH |
| Power Supply | AC100-240V, 250W |
| Dimension | 440mm x 430mm x 90mm |
