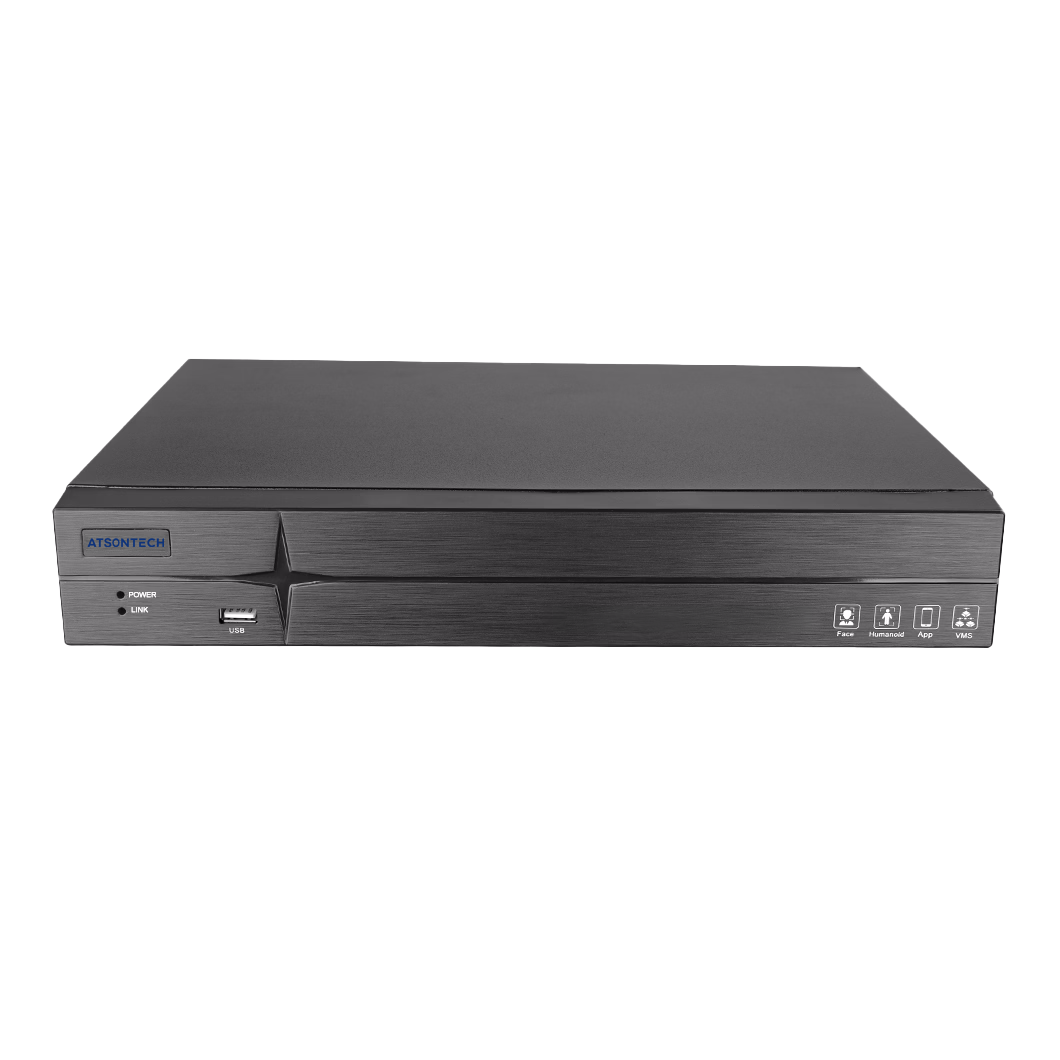

AT-CTV- is a high-performance 16-channel Network Video Recorder designed for modern IP-based CCTV system. It features efficient H.265 video compression, intelligent video analytics, and flexible storage options for reliable long-term recording. With real-time monitoring, remote access via mobile app or browser, and a user-friendly interface, it is ideal for medium to large-scale surveillance setups requiring secure and centralized video management.

Main Features:

• VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
• Smart analysis: Human detection, line crossing, retrograde detection, absent detection, loitering detection, area intrusion, illegal vehicle
• Support ANR function (need front IP camera support TF card storage
• Support broadcast function

Technical Specifications

Item	Detail
Power Supply	DC12V/2A
Power Consumption	<15W
IP Camera Input	16 Channel
Incoming Bandwith	80 Mbps
Outgoing Bandwith	40 Mbps
HDMI Output	3840×2160, 1920×1080, 1280×1024, 1024×768
VGA Output	1920×1080, 1280×1024, 1024×768
Decoding Capacity	1ch 8MP, 4ch 2MP
Dual Stream	Support
Multi-screen display	1/4/6/8/9/10/16
Resolution	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, etc.
Trigger Event	Motion Detection, Video Loss, Smart Detection, Human Detection
Sync Playback	1ch 4K, 4ch 1080p
Search Mode	Smart, Time/Date, Alarm, Smart detection
Playback Mode	Normal, Motion, Alarm input, Smart Detection
Backup Mode	USB Device, Network
Network Function	HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, RTMP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, PPPoE
Remote Users	10 users
Smartphone Connection	Support
Interoperability	SLINK, ONVIF, SDK
HDD	1 SATA interface
Capacity	Up to 16TB for each HDD
Network Interface	1 RJ-45 (10/100Mbps)
Audio I/O	HDMI Audio Output, 1ch Audio I/O
USB	2 Ports (2.0 x 2)
HDMI	1
VGA	1
Operating Conditions	-10°C ~ 50°C (14°F ~ 122°F)
Storage Condition	Less than 90% RH
Certification	CE/FCC
Weight	0.9kg (19.1 lb) without HDD
Dimension	210mm x 25mm x 420mm
