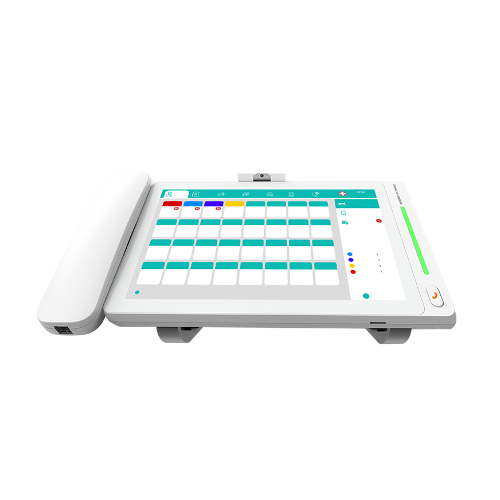

AT-NC-IPNS800 is a 10-inch LCD touch screen terminal that serves as a flexible nurse host, doctor host, or main control host. It offers unlimited bed route management, supports data docking, transfer hosting, and massage taking, making it ideal for modern nurse call and patient management systems.
- 10-inch high-resolution LCD touch screen
- Multi-role use: nurse host, doctor host, main control host
- Supports unlimited bed route management
- Enables smooth data docking and transfer operations
- Integrated physical answer button for easy call handling
| Specification | Details |
|---|---|
| Screen Size | 10 inches |
| Resolution | 1280 x 800 px |
| Storage | 8GB |
| Physical Button | Answer button |
| Network | 10–100Mbps adaptive |
| Communication Protocol | TCP, UDP, RTP, ARP, IGMP, HTTP, SIP |
| Interfaces | 1x Power, 1x RJ45, 1x Burn Switch, 1x Type-C, 1x Serial Port, 1x RS-485, 1x Control Interface, 1x Audio Output, 1x Audio Input, HDMI |
| Display | Touch Screen |
| Power Supply | Adapter DC12–24V |
| Working Voltage | DC 12–24V |
| POE | Support |
