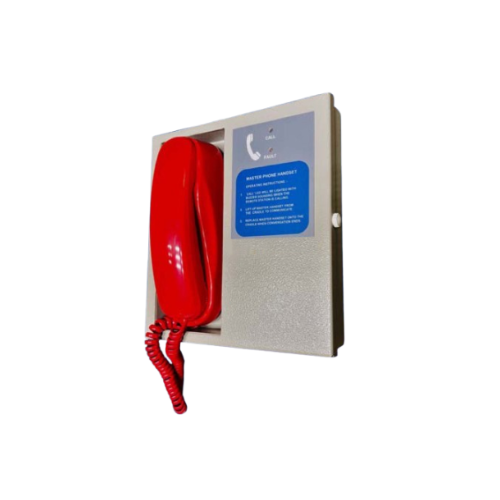

AT-FA-MFI8Z The Master Fire Intercom Unit offers a simple, yet effective and low-cost solution for emergency communication.
The Master Fire Intercom Unit may be provided as standalone unit mounted in a housing, or as a sub assembly, which could easily be integrated into any Fire Alarm Control Panel.
Master Intercom Unit Operations
Main Features:
- IP 40
- Up to 5 Handsets
- Max 1,000 meters cable
Technical Specifications
| Item | Detail |
|---|---|
| Power Requirement | 24 VDC 100mA |
| Recommended Cable | 2c (twisted pair or screen) x 1.5 sq. mm |
| Max Cable Length | 1,000 meters |
| Conferencing Capability | Up to 5 Handsets |
| Fault Monitoring Provided | Open / Short Circuit for Remote Handset cabling, with Relay Status Ouput provided for external Monitoring |
| Power Consumption (During Standby) |
5mA |
| Power Consumption (During Communication) |
32mA on Communication, Plus 5mA per additional Handset during conferencing 50mA upon Fault Relay activition |
| Ingress Protection | IP 40 |
| Nett Weight | 1.95kg |
| Dimension | 242mm(H) x 220mm (W) x 76mm (D) |
-
- Simply plug-in a Portable Handset into any Remote Phone Socket, or pick-up the Remote Handset, and an audio / visual call signal will be transmitted to the Master Phone Unit.
- Personel manning the Master Intercom Unit simply lift-up the Master Handset, and communication will immediately be established with the Portable or Remote Handset.
- If more than one person plug into the Remote Phone Sockets or pick-up the Remote Handsets, conferencing will be established.
- To terminate the communication, simply unplug the Portable Handset or hang up the Handset.
