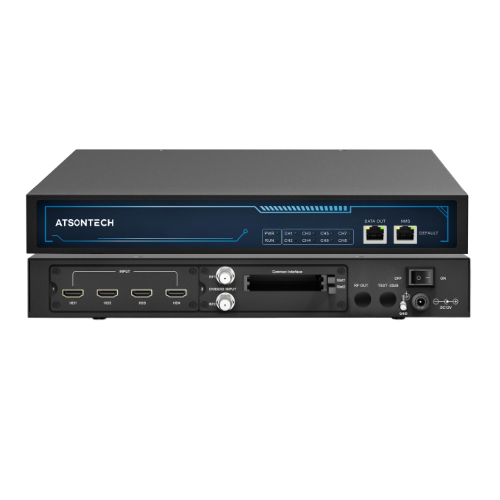

AT-PTV-HE4HD2CAM256 is a centralized processing platform for small digital or IPTV front-end services.
It offers flexible installation options including cabinet, wall-mounted, or desktop setup.
The device can be configured through local or cloud network, with a user-friendly web interface for simple operation.
It supports intelligent functions such as parameter batch import/export and exception reminders, making it a highly integrated and cost-effective IPTV front-end signal processing solution.
Main Features:
- Card design, 2 cards with 4 HDMI + 2 CAM input
- Supports H.264 video encoding input (optional)
- Supports UDP/RTP protocol input and SPTS stream processing
- 1 Gigabit port and 1 management port
- Operated via PC (WEB) with cloud management support
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | DC 12V |
| Maximum Current | 7000 mA |
| Installation Form | 1U 19-inch chassis, wall mount, desktop |
| Total Number of Slots | 2 |
| HDMI & CAM Inputs | 4 HDMI ports and 2 CAM slots |
| IP Output Connector | 1 Gigabit RJ45 network port |
| IP Output Format | Supports UDP/RTP output, SPTS/MPTS stream, up to 256 IP addresses |
| Working Temperature | -10 °C ~ 45 °C |
| Working Humidity | 40% ~ 70% |
| Storage Temperature | -40 °C ~ 70 °C |
| Storage Humidity | 40% ~ 95% |
| Dimension | 318 mm (L) × 260 mm (W) × 44 mm (H) |
