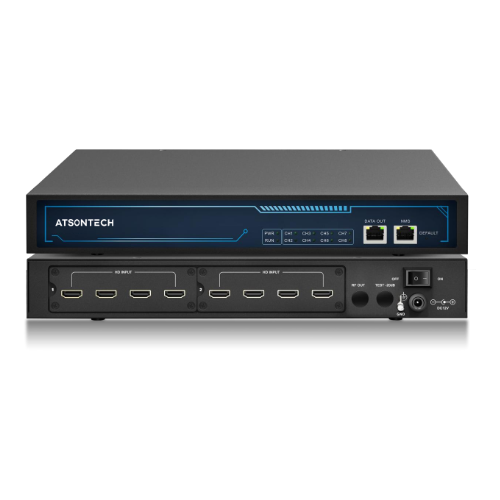

AT-PTV-HE8HDM256 is a highly integrated, cost-effective IPTV front-end signal processing platform designed for small-scale digital or IPTV services. With flexible installation (rack-mount, wall-mount, or desktop) and easy parameter configuration via local or cloud network, this device offers a simple and intuitive web interface with smart features like batch parameter import/export and exception reminders. It’s ideal for centralized IPTV front-end signal processing.
Main Features:
- Modular card design: 2 slots with 8 HD inputs
- Supports H.264 video encoding input
- Supports UDP/RTP protocol input and SPTS stream processing
- Equipped with 1 Gigabit port and 1 management port
- Remote operation via PC (WEB) and cloud management support
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | DC12V |
| Maximum Current | 7000mA |
| Installation | 1U 19-inch chassis, wall-mounted, desktop |
| Connector Input Module | 2 slots; each slot supports 4 HD encoding modules |
| IP Output Connector | 1 x Gigabit RJ45 network port, 1 management port |
| IP Output Format | UDP/RTP output; supports SPTS/MPTS stream processing, up to 512 IP addresses |
| Working Temperature | -10°C ~ 45°C |
| Working Humidity | 40% ~ 70% |
| Storage Temperature | -40°C ~ 70°C |
| Storage Humidity | 40% ~ 95% |
| Dimension | 318mm(L) x 260mm(W) x 44mm(H) |
