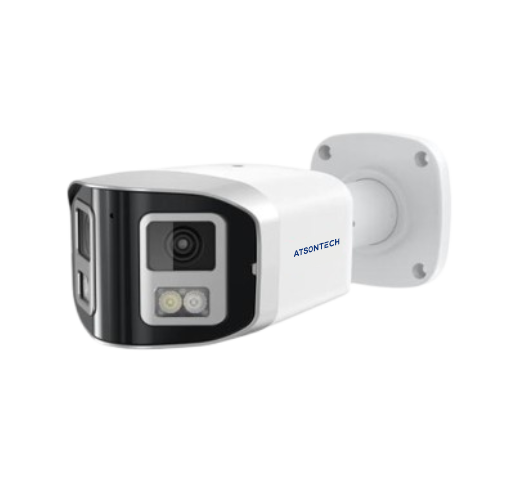

AT-CTV-IPB04P170MS is a 4MP camera that offers comprehensive wide-angle coverage. Designed to deliver clear, high-definition images in various lighting conditions, it combines advanced day and night monitoring with intelligent features such as motion detection, two-way audio, and remote access. With robust weatherproof protection.
Main Features:
- 1/2.9” CMOS sensor
- 4MP wide-view resolution 3840 x 1080p (32:9)
- 170° wide-angle
- Low illumination 0.01 Lux
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter
- Digital WDR, Mirror, Defogging
- Multiple Style OSD overlay, motion detection, privacy mask
- RTSP and ONVIF 17.06 compatible with third-party NVRs
- H.264/H.265 dual-stream media server
- Easy-to-use P2P cloud service
- User authentication & video data encryption
- Alarm snapshot to email and FTP
- RJ45 100Mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
Technical Specifications
| Item | Detail |
|---|---|
| Power Supply | 12 VDC ±10% |
| Sensor | 1/2.9” Progressive scan CMOS sensor |
| Focal Length | F1.6mm ~ 3.6mm fixed lens |
| FOV | 170° |
| IR Distance | 20–30M |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Audio | Built-in Mic, Speaker, Two-way audio |
| Dimension | 236mm(L) x 110mm(W) x 74mm(H) |
