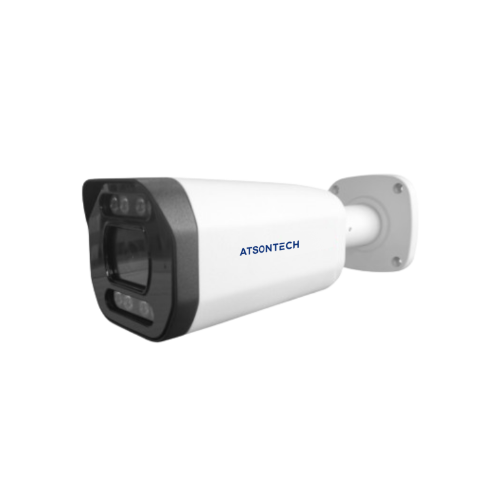

AT-CTV-IPB06MLMSC is a 6MP outdoor IP bullet camera designed for sharp image capture and reliable performance in outdoor environments. With human detection, infrared night vision, and smart video features, it provides clear, continuous monitoring for spaces like offices, shops, and residential areas.
Main Features:
- 6MP(3072×2048)/5MP(2592×1904)/4MP(2560×1440)@25fps
- IR distance up to 50 meters (164ft)
- Smart video analysis: area intrusion, absent alarm, loitering, line crossing detection, vehicle illegal parking, retrograde detection
- Built-in human/vehicle detection algorithm
- Support 3DNR and Mirror
- Auto electronic shutter to adapt to various surveillance environments
- HTTPS transmission with password
- ONVIF, SLINK, Email, NTP service supported
- SECVIEW Mobile Application, Lite IMS & Professional IMS 4.0 central management software
Technical Specifications
| Item | Detail |
|---|---|
| Sensor | 1/2.7” Progressive scan CMOS sensor |
| Lens | 2.7–13.5mm Motorized |
| Lens Interface | M14 |
| IR Distance | 50 meters (164ft) |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPOE, UPNP, SMTP, DNS, QoS |
| Audio | Microphone, Speaker |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0% ~ 90% |
| Power Supply | DC12V, 0.6A, max. 6W; PoE: 802.3af, Max. 7W |
| Dimension | 289mm(L) x 92mm(W) x 85mm(H) |
