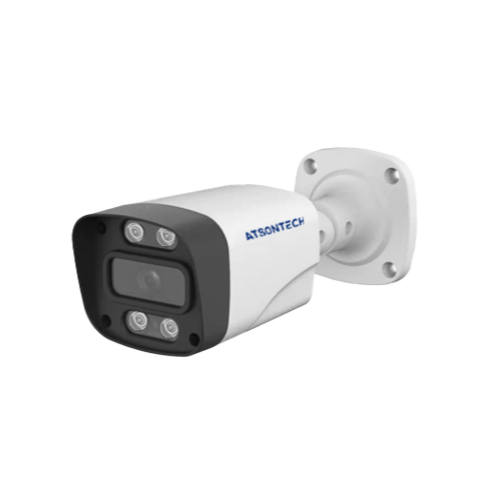

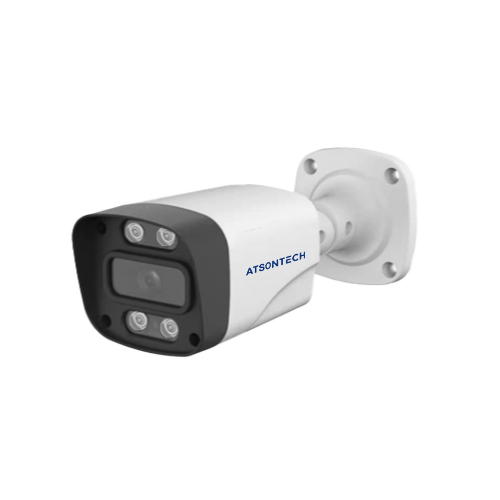

AT-ACS-IPBFL is a 4MP outdoor IP bullet camera designed for sharp image capture and reliable performance in outdoor environment. With human detection, infrared night vision and smart video detection, infrared night vision and smart video features, it provides clear, continous monitoring for spaces like offices, shops, and residential areas.
Main Features:
- 4MP/3MP@20fps, 2MP@25fps
- Support low bit rate and low latency
- Smart H.265/H.265/H.264, save bandwith and storage space
- Smart IR mode
- Support ICR auto switch
- Support 3D DNR and digital WDR
- Support ONVIF, SLINK, email, NTP service
Technical Specifications
| Item | Detail |
|---|---|
| Power Supply | DC12V, 0.5A, max; PoE: 802.3af, Max. 6W |
| Sensor | 1/2.9″ Progressive Scan CMOS |
| Lens | 3.6mm |
| Lens Interface | M12 |
| Min. Illumination | Color: 0.005Lux/F1.6, AGC ON, B/W:0Lux (IR LED ON) |
| Electronic Shutter | 1/5 s to 1/100,000 s |
| S/N Ratio | ≥52dB |
| Day/Night mode | Auto, Day, Night, Custom |
| Dual Lights | Warm light 25m, Infrared IR 30m |
| Image Setting | Brigtness, Contrast, Sharpness, Saturation, Chroma |
| IR Led Control | Auto/Manual/Off |
| Track People | Support |
| Detection Area | Appointed area, default full-screen |
| Detection Quantity | ≤5 People Humanoid |
| Humanoid Size | Humanoid Pixel ≥40×40 |
| Detection Ratio | ≥99% (meet above requirement) |
| Capture Speed | ≤1s |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Video Encode Standard | S.265/H.265/H.264 |
| Encoding Feature | Main stream:4MP 2560×1440@20fps, 2MP 1920×1080@25fps Sub-code stream:D1(720×576), VGA(640×360) |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u / 64Kbps |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, RTP, IPv4, DDNS, NTP, PPPoE, UPNP, SMTP, DNS, Qos |
| Connection Protocol | ONVIF, SLINK |
| Security Mode | Authorized username & password, HTTPS w/ password, AES connecting w/ password, RTSP verification |
| Network Port | RJ45 10M/100M |
| Audio | Microphone |
| Protection | Outdoor, IP67, Metal |
| Working Temp | -30°C ~ 60°C |
| Working Humidity | 0% ~ 90% |
| Dimension | 184mm(L) x 65mm(W) x 60mm(H) |
