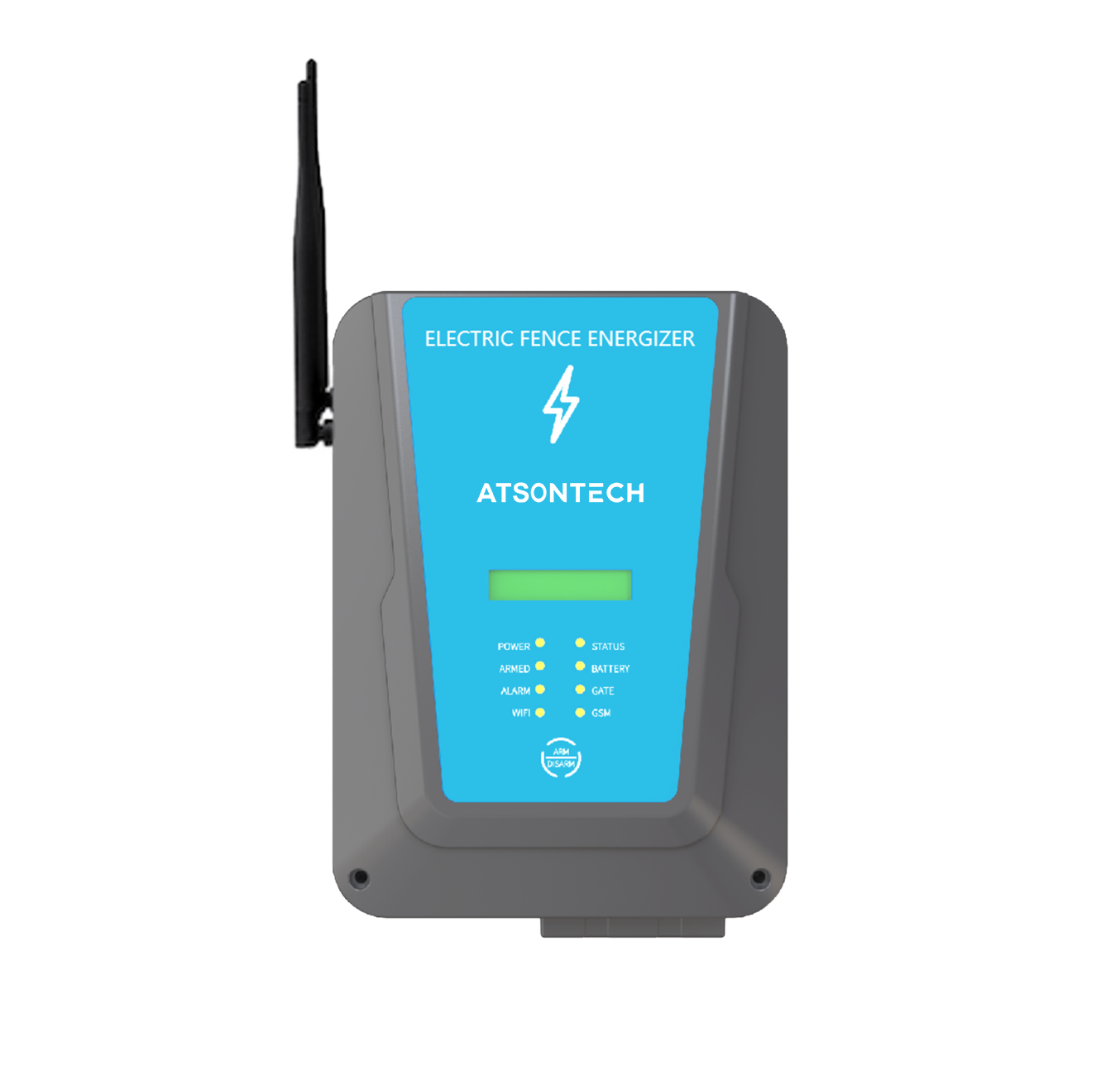

AT-EF-T28WG is designed with an innovative appearance, offering convenient installation and maintenance with simple operation. It is not restricted by terrain and provides effective security coverage without blind spots or dead corners. The system can be erected across uneven ground, installed at gates and corners, and delivers a strong blocking and deterrent effect.
Main Features:
- Sleek panel design
- Built-in GSM/WiFi module
- One panel, two zones, four changes
- Supports multiple working modes
- Flexible power supply options
- Multiple alarm modes
- Adjustable high-voltage pulse output frequency
Technical Specifications
| Item | Detail |
|---|---|
| AC Input | 230V <30W average power consumption during normal high-voltage operation |
| Voltage Output | 8KV / 4KV |
| Output Energy | 0.5 – 3 joules |
| Pulse Frequency | Once per second |
| Relay Output | 10–14V DC, 500mA |
| Operating Temperature | -10 °C ~ 50 °C |
| Operating Humidity | <80% RH |
| IP Rating | IPX4 |
| Shell Material | ABS |
| Weight | 3 kg (excluding packaging and batteries) |
| Size | 290 mm × 213 mm × 115 mm |
| Backup Battery Specification | 12V 7Ah lead-acid battery |
