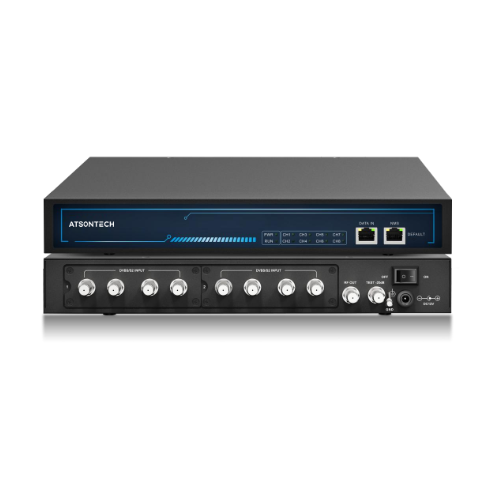

The AT-DTV-HE8IFF4 is a compact yet powerful platform for centralized processing of small digital TV front-end services. Its flexible installation supports cabinet, wall-mounted, or desktop setups. Users can select the appropriate cards to tailor the optimal configuration for their project requirements, balancing functionality and cost efficiency. With an intuitive web interface and cloud service support, this headend offers high integration for modern digital signal processing.
- Supports up to 2 cards per device
- Supports 4–8 HD channels with DVBS-S2 input
- Supports UDP/RTP protocol input with SPTS/MPTS stream processing
- Supports up to 256 IP addresses with Gigabit input
- Supports PID remapping, PSI/SI information editing and insertion
- Digital modulation output for 4/8 frequency points supporting DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC standards
- Equipped with 1 Gigabit data port and 1 management port
- Operated through PC (WEB) with cloud service support
| Specification | Details |
|---|---|
| Supply Voltage | DC 12V |
| Maximum Current | 7000 mA |
| Installation | 1U 19-inch chassis, wall-mounted, or desktop |
| Connector Input Module | Total slots: 2 Each slot supports DVBS-S2 input modules |
| IP Input Port | 1 x Gigabit RJ45 network port |
| IP Input Format | Supports UDP/RTP protocol input/output, SPTS/MPTS stream processing, up to 256 IP addresses |
| RF Output Port | Female connector, 1 RF output and 1 -20dB test port output |
| RF Output Standard | DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB-T, ATSC |
| RF Frequency Range | 50–870 MHz, minimum step 1 MHz |
| RF Output Level | ≥105 dBuV (0–20 dB adjustable, step 0.5 dB) |
| RF Out Band | ≥60 dB |
| Working Temperature / Humidity | -10°C ~ 45°C, 40% ~ 70% |
| Storage Temperature / Humidity | -40°C ~ 70°C, 40% ~ 95% |
| Dimension | 318 mm (L) x 260 mm (W) x 44 mm (H) |
