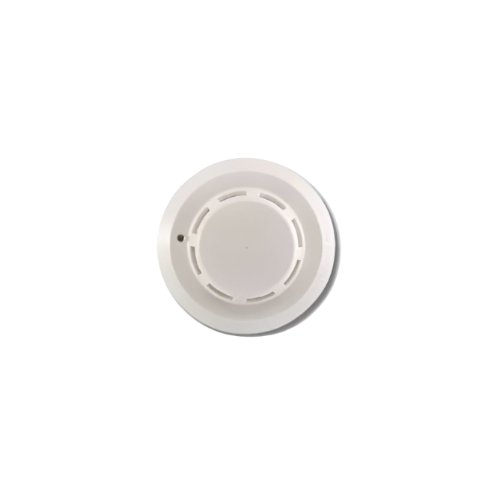

AT-CSD-101 Conventional Smoke Detector from ATSONTECH. This smoke detector sets new standards in fire detection technology. The product features unique construction, stable performance & reliable, as well as especially suitable for places with a sharp increase in temperature in case of fire.
Main Features
- Smoke Detector Photoelectric
- Integrated algorithm for analyzing fires, significantly improving sensitivity
- Drift compensation to adjust for broad environmental changes
- Unique space design that protects against insects, dust and light intrusion
- Removable sensor chamber, easy for maintenance
- Self-diagnostic
Technical Specifications
| Operating Voltage | 24VDC |
|---|---|
| Standby Power | ≤150μA |
| Alarm Current | 10mA – 30mA |
| Maximum Ripple Voltage | 4V (Peak) |
| Indicator | The red light flashes in normal status and lights up continuously when the alarm is on. |
| Alarm Reset | Instant power off (≤10s Max, 25VDC Max.) |
| Power-on Time | ≤10s |
| Maximum Wind Speed | 7.6m/s (1500fpm) |
| Wiring | Polarized 2-core cable for zone wiring |
| Environment Temperature | -10°C – +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Protection Rating | IP23 |
| Material | ABS, ivory color |
| Dimension | Diameter: 100mm, Height: 55mm (including base) |
| Mounting Hole Distance | 45mm – 75mm |
| Weight | Approximately 120g |
Recommended Connection
Use of 1.0 mm² or larger twisted pair cable, in accordance with local codes, is recommended. This smoke detector has four terminals with markings on the base that include:- Positive Entry
- Positive Exit
- Negative In and Out
- Dasar cocok untuk dipasang pada kotak backbox standar Eropa, dengan jarak lubang pemasangan 45mm hingga 75mm.
