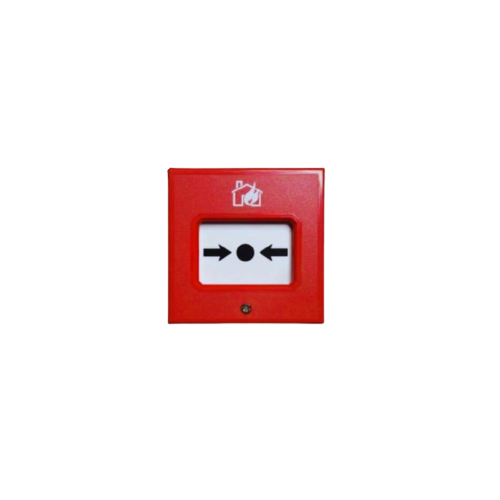

AT-FA-CMP201 Conventional Manual Call Point from ATSONTECH. This is a conventional manual call point that is used to send alarm signals to the main control system when a fire occurs. This manual call point is ideal for installation in public places.
Main Features
- Electronic Manual Call Point that can be reset by a special key.
- The alarm is triggered by pressing a button, and can be reset with a special key.
- Desain plug-in simple and convenient for installation and disassembly.
- Made of hard materials that lasts for a long time.
Technical Specifications
| Operating Voltage | Loop 24V (16V – 28V) |
|---|---|
| Standby Power | ≤50mA |
| Alarm Current | ≤30mA |
| Trigger Type | Re-usable |
| Trigger Mode | Pressing the action plate manually |
| Continuing Mode | Manually resumed by a dedicated button |
| Input Protection | IP40 |
| Material | ABS, Red |
| Dimension (LxWxH) | 88mm x 88mm x 53mm (Including the basis) |
| Mounting Hole Distance | 60mm |
| Weight | approximately 160g |
Recommended Connection
It is recommended to use 1.0 mm² or larger twisted pair cable, according to local codes. This manual call point has a vertical keyhole for reset with the key marked on the front panel.
