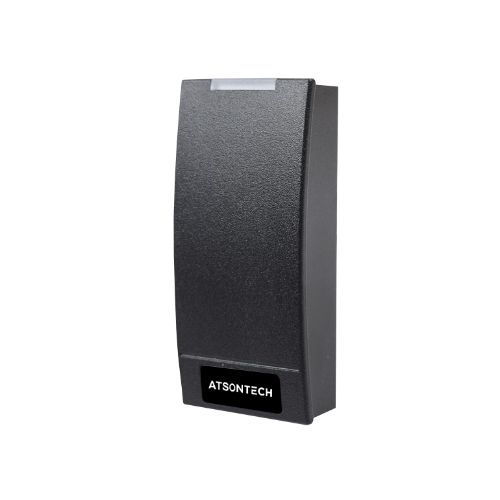

AT-ACS-RM56 Reader is type of access control reader that is used to read and authenticate credentials, such as Card, in order to grant access to a restricted area. The AT-ACS-RM56 reader is multi-technology reader that supports various technologies including 125kHz Proximity, 13.56MHz.
Main Features:
- Adaptable, Interoperable with a growing range of technologies
- Powerfully Secure, data model provide an extra layer of encryption for additional protection of identity data
- Standardized communications, uses open Supervised Device Protocol for communications between reader and controller
- Ideally suited for mullion-mounted door installation or any flat surface
Technical Specifications
| Item | Detail |
|---|---|
| Supported Output Protocols | Weigand |
| Frequency | 13.56MHz MIFARE |
| Read Range | Up to 5CM |
| Reading Time | ≤300ms |
| LED Indocator | Red & Green Dual-color LED | Beeper | Yes |
| Power Supply | DC6-14V |
| Current Consumption | Max. 70mA |
| Input Ports | 2 (External LED, External Buzzer Control) |
| Reverse Polarity Protect | Yes |
| Operating Temp | -20°C to +65°C |
| Operating Humidity | 10% to 90% Relative Humidity |
| Material | ABS+PC with textured finish |
| Color | Black |
| Protection | IP65 (waterproof) |
| Weight | 50g |
| Dimension | 100mm x 49mm x 20mm |
