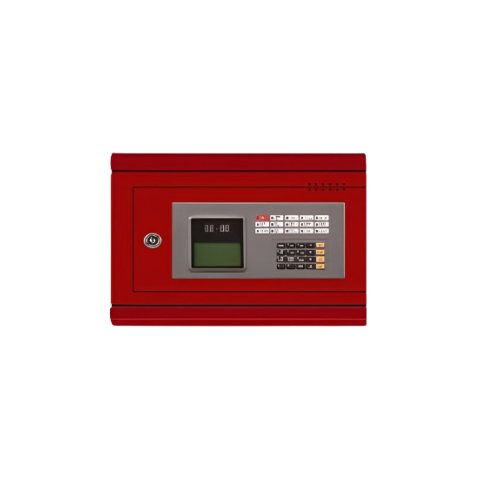

AT-AN2080 is an Annunciator that enables decentralized operation of fire detection systems. The design of this annunciator is identical to the fire panel.
The housing of this annunciator is designed for neat and clean installation in highly visible locations.
The AT-ANP00 can be installed by flush-mount or surface-mount methods. The display and mounting holes are shown in the drawing.
Main Features:
- Provides remote display and control of the system
- Password protected access level
- 8×18 character LCD display
- 15 LEDs to display important information
- Functional control of the network panel
- Network operation: Acknowledge, Silence, Reset
- Structure flush-mount or surface-mount
- Satisfy the network protocol by selecting the appropriate network card
Technical Specifications
| Specifications | Detail |
|---|---|
| Supply Voltage | 20VDC~27VDC |
| System Current | Max. 0.5A |
| Communication Distance | RS485: Less than 1200m, CAN: Less than 3000m |
| Display | 8(Line) x 18 (character) |
| Network | Corresponds to the network card |
| Operating Environment | 0°C ~ +40°C, Humidity ≥95%, no condensation |
| Dimension | 390mm W x 270mm H x 100mm D |
Recommended Cable & Typical Connections
It is recommended to use 1.0mm² or larger fire twisted pair cable for communication cables, and 1.5mm² or larger for power supply cables. All cables must comply with local codes.
Terminal connections on the base:
- B1 B2: Network connection from previous panel, polarized
- A2 D2: Network connection to the next panel, polarized, D2 D1: 24VDC power supply, non-polarized
The function of the terminal for networking will be considered according to the adapted network card.
