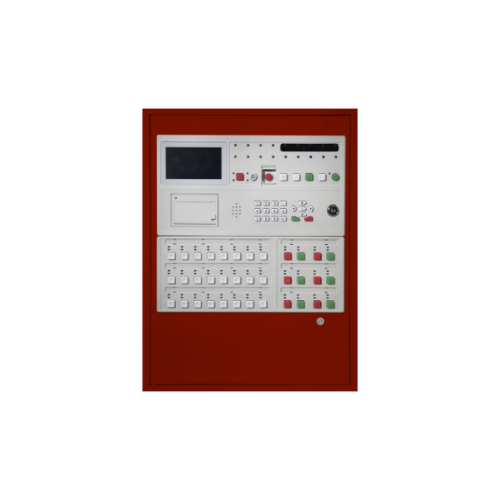

AT-FA-2000H Intelligence Remote Panel are new designed star products of Atsontech. The Linkage control function allows to be used with other products of Atsontech to form any integrated alarm linkage control system with flexible configuration, especially suitable for the application of small and medium-sized fire alarm and fire linkage integrated control system.
Configuration Options
Main Features:
- 242 addresses per loop
- Graphic color display, intuitive operation
- Flexible modular structure, multiple function
Technical Specifications
| Item | Detail |
|---|---|
| Main Power | 220V AC |
| Backup Battery | 2 x 12V/5Ah |
| Loop No. | 1 Loop |
| Loop Current | Total max. 700mA |
| Loop Capacity | 242 addresses per loop |
| Output Interface | Total max. 300mA Alarm: Max 24V/150mA 24V: Max. 24V/300mA |
| IP Rating | IP30 |
| Operating Temperature | -10°C-+50°C 0-95%RH, non-condensing |
| Special proof | Phosphine corrosion proof for 2G/4G |
| Networking Method | CAN, Fiber, TCP/IP |
| Dimension | 500mm*380mm*80mm |
-
- Commissioning through panel or PC
- RS232, RS485 port for connection with Graphic Monitoring Control or Networking
- CAN/Fiber TCP/IP Networking
