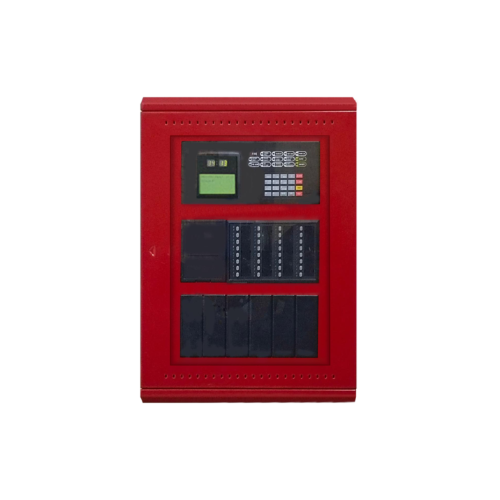

AT-2000 is an addressable fire control panel suitable for small to medium-sized locations. This panel allows centralized management of addressable devices and features a range of advanced capabilities to enhance fire detection and response.
AT-2000 is an ideal choice for installations requiring a reliable and efficient solution for fire detection, especially in locations with high safety requirements.
Cable Recommendations & Typical Connections
It is recommended to use a 1.5mm² or larger twisted pair fire cable for loop wiring and 1.5mm² or larger cable for power supply wiring. All cables must comply with local codes.
Terminal connections on the base:
Main Features:
- Single-loop panel with a capacity of up to 235 addressable devices
- Dual-loop panel with a capacity of up to 474 addressable devices
- Large 4×40 character LCD display
- USB alarm support
- Information display with 128 LEDs
- Power supply capacity: 6.0Ah/24V
- Connectivity with printer, network module, and repeater
- Remote control and extensive fault memory
Technical Specifications
| Item | Detail |
|---|---|
| Supply Voltage | 24VDC |
| Main Power Capacity | 4.5A / 150W |
| Battery Capacity | 6.0Ah |
| Number of Loops | 1 or 2 loops |
| Maximum Devices per Loop | 235 devices |
| Dimensions | 490mm x 380mm x 130mm |
-
- Network card: use cables to connect to other devices
- Active output: provides 24VDC to external equipment in case of a fire
- Remote control connections: remote control of sound equipment (Class Change)
