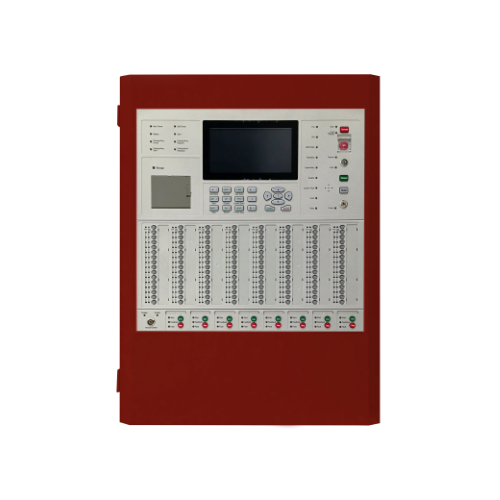

AT-FA-6000 Intelligent Addressable Fire Control Panel is designed to standard with qualities of simple installation, operation, and easy maintenance. Modularized structure allows the panel to be expanded to maximum 6 loops, 1452 devices can cover most medium & big projects.

Main Features:

• Single loop panel capacity 242 addressable devices
• 6-loop panel capacity 1.452 addressable devices
• 7-inch LCD Display
• Wide range power supply
• 5 card slots with mixed loop card, network card and communication card
• RS485 or CAN interface enables networking suitable network card

Technical Specifications

Item	Detail
Primary Supply	220VAC-15%/+10%, 50Hz
Max. Current	3.15A
Standby Power	14AH/24VDC sealed lead-acid batteries
Loop Capacity	1 – 6 Loops
Device Capacity	242 addresses per loop
LCD Display	800×480 Colorful 7.0″ LCD
Manual Control	128 points
Direct control	8 lines
Card slots	5 slots, mixed with loop card, network card and communication card
Printer	Thermal, ASCII code printer
Protection	IP30
Operating Environment	0°C ~ +40°C ≤93% RH, non-condensing
Dimensions	500mm(W) x 700mm(H) x 1780mm(D)

Cable Recommendations & Typical Connections 1.mm2 or above fire cable is recommended for communication cable and 1,5mm2 or above fire cable is recommended for power supply. All cables should be subject to local codes. Terminal connections on the base:

• • Loop : Min 1.0mm ideally 1.5mm
  • Network : Min 1.0mm ideally 1.5mm
  • Active Outputs : 1.5mm ideally 2.5mm
